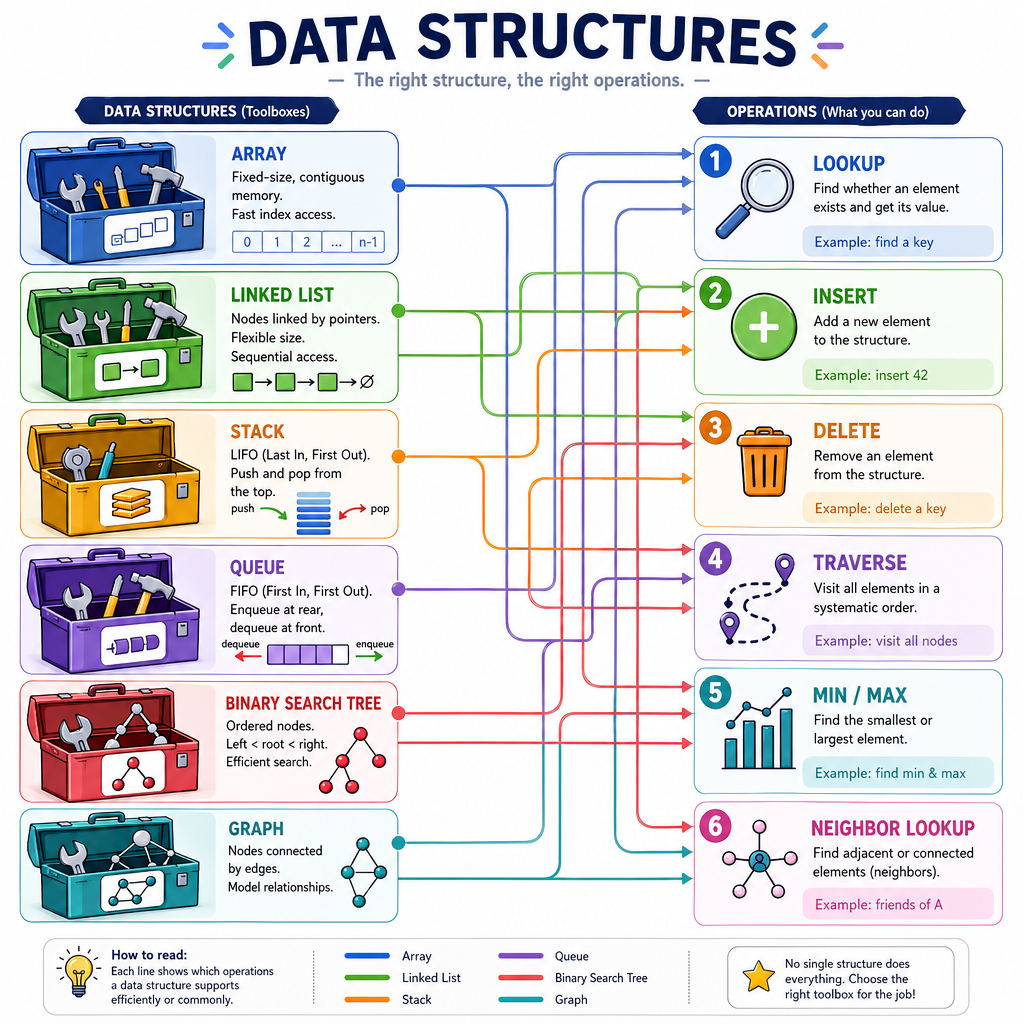

Introduction to Data Structures

Data structures are the building blocks of any software application. They define the way data is organized, stored, and accessed. As a senior engineer with experience in data structures and algorithms, you already understand the importance of choosing the right data structure for a given problem.

In simple terms, a data structure is a way to organize and store data in memory. It provides operations to manipulate the data and perform various tasks efficiently. The choice of data structure can greatly impact the performance and efficiency of an algorithm.

For example, if you need to store a collection of elements and frequently access them by their index, an array would be a suitable data structure. On the other hand, if you need to store and retrieve data in a specific order, a linked list might be a better choice.

The study of data structures involves understanding various types of data structures, their properties, advantages, and trade-offs. It also includes analyzing the time and space complexity of different operations performed on the data structure.

Understanding data structures is essential for solving complex problems and optimizing algorithms. It allows you to design efficient and scalable solutions by leveraging the strengths of different data structures.

Let's dive deeper into various data structures and explore their characteristics, use cases, and implementation details.

xxxxxxxxxx

class Main {

  public static void main(String[] args) {

    // replace with your Java logic here

    System.out.println("Data structures are the building blocks of any software application. They define the way data is organized, stored, and accessed."

  }

}

Arrays and Linked Lists

As a senior engineer with extensive experience in data structures and algorithms, you are well aware of the importance of arrays and linked lists in programming.

Arrays are one of the most fundamental data structures. They are a collection of elements of the same type stored in contiguous memory locations. Arrays provide efficient random access to elements based on their index. They are commonly used for storing and accessing data in a sequential manner.

Consider the following Java code snippet that demonstrates the usage of an array:

1int[] arr = {1, 2, 3, 4, 5};
2System.out.println("Array: " + Arrays.toString(arr));

Running this code will output the array: [1, 2, 3, 4, 5].

Linked lists are another important data structure. Unlike arrays, linked lists do not require contiguous memory locations for storing elements. Each element in a linked list, called a node, contains a value and a reference to the next node.

Consider the following Java code snippet that demonstrates the usage of a linked list:

1LinkedList<Integer> linkedList = new LinkedList<>();
2linkedList.add(1);
3linkedList.add(2);
4linkedList.add(3);
5linkedList.add(4);
6linkedList.add(5);
7System.out.println("Linked List: " + linkedList);

Running this code will output the linked list: [1, 2, 3, 4, 5].

Arrays and linked lists have their own advantages and use cases. Understanding their differences and knowing when to use each data structure is crucial for designing efficient and optimized algorithms. By leveraging arrays and linked lists, you can solve various programming challenges and build scalable applications.

xxxxxxxxxx

class Main {

  public static void main(String[] args) {

    // replace with your Java logic here

    int[] arr = {1, 2, 3, 4, 5};

    System.out.println("Array: " + Arrays.toString(arr));

​

    LinkedList<Integer> linkedList = new LinkedList<>();

    linkedList.add(1);

    linkedList.add(2);

    linkedList.add(3);

    linkedList.add(4);

    linkedList.add(5);

    System.out.println("Linked List: " + linkedList);

  }

}

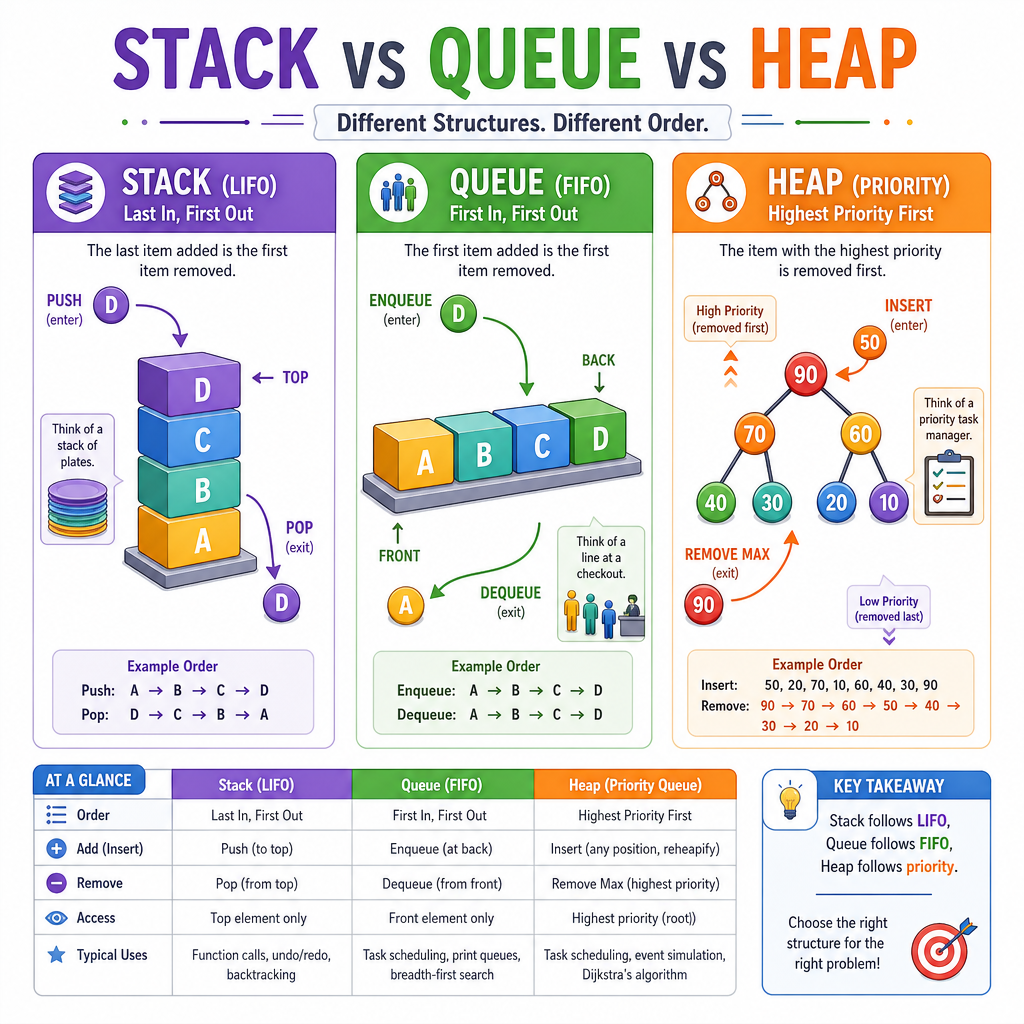

Stacks and Queues

As a senior engineer with extensive experience in data structures and algorithms, you have undoubtedly encountered the concepts of stacks and queues. These two data structures play a crucial role in solving a wide range of programming problems.

Stack is a linear data structure that follows the Last-In-First-Out (LIFO) principle. Elements are added and removed from the top of the stack. Think of it as a stack of books - the last book you put on the stack is the first one you can remove.

1Stack<Integer> stack = new Stack<>();
2stack.push(1);
3stack.push(2);
4stack.push(3);
5int topElement = stack.peek();
6stack.pop(); // Removes the top element

In the code above, we are creating a stack using the Stack class in Java. We add elements to the stack using the push method, retrieve the top element using the peek method, and remove the top element using the pop method.

A queue, on the other hand, follows the First-In-First-Out (FIFO) principle. Elements are added at the rear and removed from the front. Imagine a queue of people waiting in line - the person who has been waiting the longest gets served first.

1Queue<Integer> queue = new LinkedList<>();
2queue.add(1);
3queue.add(2);
4queue.add(3);
5int frontElement = queue.peek();
6queue.remove(); // Removes the front element

In the code above, we are creating a queue using the LinkedList class in Java. We add elements to the queue using the add method, retrieve the front element using the peek method, and remove the front element using the remove method.

Stacks and queues have various real-life applications. For example, a stack can be used to implement the undo feature in a text editor, while a queue can be used to process tasks in a multi-threaded environment.

By understanding the principles and operations of stacks and queues, you can choose the appropriate data structure for your specific problem and efficiently solve it.

xxxxxxxxxx

class Main {

  public static void main(String[] args) {

    // Code for explanation

  }

}

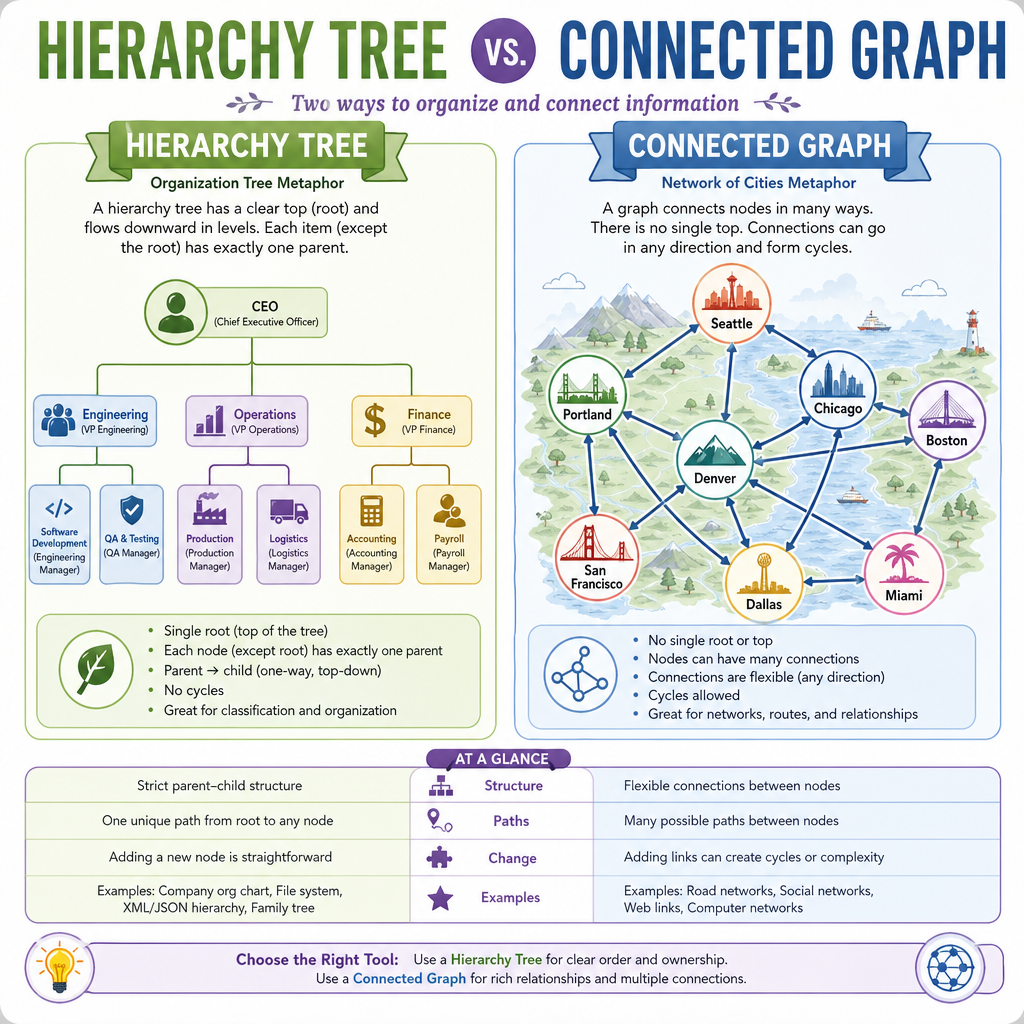

Trees

Trees are a fundamental data structure in computer science and have numerous applications in algorithms and problem-solving. A tree is a hierarchical structure composed of nodes connected by edges. It is similar to a family tree, where each node represents a person and the edges represent relationships between them.

Terminology

Before diving into the details of trees, let's familiarize ourselves with some common terminology:

• Node: Each element in a tree is called a node. Nodes can contain data or values.
• Root: The topmost node in a tree is called the root node. It serves as the entry point to the tree.
• Parent and Child: Nodes in a tree can have relationships, with one node being the parent of another node (directly connected below it). The node below is called the child of the parent node.
• Leaf: Nodes that do not have any children are called leaf nodes or terminal nodes.
• Subtree: A subtree is a smaller tree formed by a node and its descendants.

Tree Example

Let's consider a simple example of a binary tree:

1   1
2  / \
3 2   3

In the code above, we create a binary tree with three nodes. The root node has a value of 1 and has two child nodes - node 2 and node 3.

Understanding the structure and properties of trees is crucial for solving complex algorithms and efficiently storing and retrieving data. Let's explore various types of trees and their applications in the upcoming lessons.

xxxxxxxxxx

class Main {

  public static void main(String[] args) {

    // replace with your Java logic here

    TreeNode root = new TreeNode(1);

    TreeNode node1 = new TreeNode(2);

    TreeNode node2 = new TreeNode(3);

    root.left = node1;

    root.right = node2;

  }

}

​

class TreeNode {

  int val;

  TreeNode left;

  TreeNode right;

​

  TreeNode(int val) {

    this.val = val;

  }

}

Binary Search Trees

A binary search tree (BST) is a type of binary tree where each node has a key and its key is greater than all the keys present in its left subtree and less than all the keys present in its right subtree.

Binary search trees are highly efficient data structures that enable fast searching, insertion, and deletion of elements, making them suitable for a wide range of applications.

Main Properties of Binary Search Trees

1. Value Ordering: In a BST, the values are ordered in a specific way. The left subtree of a node contains values less than the node's value, and the right subtree contains values greater than the node's value.

2. Unique Keys: BSTs typically do not allow duplicate keys. If a key already exists in the tree and an attempt is made to insert it again, the duplicate key will be ignored.

3. Efficient Search: Due to their ordered nature, BSTs provide efficient search operations. The search operation compares the target key with the keys of the nodes and navigates to the left or right subtree accordingly, eliminating a significant portion of the search space in each comparison.

Java Implementation of Binary Search Tree

Here's a Java implementation of a binary search tree, including operations for insertion and inorder traversal:

1public class BinarySearchTree {
2
3    static class Node {
4        int key;
5        Node left;
6        Node right;
7
8        public Node(int key) {
9            this.key = key;
10            this.left = null;
11            this.right = null;
12        }
13    }
14
15    static Node insert(Node root, int key) {
16        if (root == null) {
17            return new Node(key);
18        }
19
20        if (key < root.key) {
21            root.left = insert(root.left, key);
22        } else if (key > root.key) {
23            root.right = insert(root.right, key);
24        }
25
26        return root;
27    }
28
29    static void inorderTraversal(Node root) {
30        if (root != null) {
31            inorderTraversal(root.left);
32            System.out.print(root.key + " ");
33            inorderTraversal(root.right);
34        }
35    }
36
37    public static void main(String[] args) {
38        Node root = null;
39        root = insert(root, 50);
40        insert(root, 30);
41        insert(root, 20);
42        insert(root, 40);
43        insert(root, 70);
44        insert(root, 60);
45        insert(root, 80);
46
47        System.out.println("Inorder traversal of the binary search tree:");
48        inorderTraversal(root);
49    }
50}

xxxxxxxxxx

}

public class BinarySearchTree {

​

    static class Node {

        int key;

        Node left;

        Node right;

​

        public Node(int key) {

            this.key = key;

            this.left = null;

            this.right = null;

        }

    }

​

    static Node insert(Node root, int key) {

        if (root == null) {

            return new Node(key);

        }

​

        if (key < root.key) {

            root.left = insert(root.left, key);

        } else if (key > root.key) {

            root.right = insert(root.right, key);

        }

​

        return root;

    }

​

    static void inorderTraversal(Node root) {

Heap Data Structure

A heap is a specialized tree-based data structure that satisfies the heap property. The heap property specifies the ordering between parent and child nodes.

A heap can be either a max heap or a min heap:

• In a max heap, the parent node is always greater than or equal to its child nodes.
• In a min heap, the parent node is always smaller than or equal to its child nodes.

Heaps are commonly used to implement priority queues, where the heap property ensures that the highest (or lowest) priority element is always at the root of the heap.

Operations

The main operations supported by a heap are:

• Insertion: Adding an element to the heap while maintaining the heap property.
• Deletion: Removing the root element from the heap while maintaining the heap property.
• Heapify: Restoring the heap property by rearranging the elements of the heap after an operation has violated the property.

Java Implementation of Min Heap

Here's a Java implementation of a min heap, including operations for insertion and heapify:

1// MinHeap class
2class MinHeap {
3  private int[] heap;
4  private int size;
5  private int maxSize;
6
7  public MinHeap(int maxSize) {
8    this.maxSize = maxSize;
9    this.size = 0;
10    this.heap = new int[maxSize];
11  }
12
13  // Other helper methods...
14
15  public void insert(int element) {
16    // Insertion logic...
17  }
18
19  public void heapify(int pos) {
20    // Heapify logic...
21  }
22}

xxxxxxxxxx

}

class Main {

  public static void main(String[] args) {

    // Replace with your Java logic here

    // Example: Creating a min-heap

    MinHeap minHeap = new MinHeap(10);

    minHeap.insert(4);

    minHeap.insert(3);

    minHeap.insert(7);

    minHeap.insert(6);

    minHeap.insert(10);

    minHeap.insert(1);

    minHeap.insert(2);

    System.out.println("Heap:");

    minHeap.printHeap();

  }

}

​

// MinHeap class

class MinHeap {

  private int[] heap;

  private int size;

  private int maxSize;

​

  public MinHeap(int maxSize) {

    this.maxSize = maxSize;

    this.size = 0;

    this.heap = new int[maxSize];

  }

Hash Tables

Hash tables, also known as hash maps, are a type of data structure that provides efficient insertion, deletion, and search operations. They are based on the concept of hashing, which involves mapping keys to indices in an array.

In a hash table, data is stored in key-value pairs. When you insert an element into a hash table, the key is hashed using a hash function to generate an index. This index is then used to store the value in the array.

One of the key advantages of hash tables is their constant-time complexity for average-case operations. This means that the time taken to perform operations like insertion, deletion, and search is independent of the size of the hash table. However, in the worst-case scenario, the time complexity can be linear if there are many hash collisions.

To handle hash collisions, hash tables use techniques like chaining or open-addressing. In chaining, each array index stores a linked list of key-value pairs that have collided. In open-addressing, if a hash collision occurs, the algorithm finds the next available slot in the array to store the key-value pair.

Here's an example of a hash table implementation in Java:

1import java.util.HashMap;
2
3public class Main {
4    public static void main(String[] args) {
5        // Create a hash table
6        HashMap<String, Integer> hashMap = new HashMap<>();
7
8        // Insert key-value pairs
9        hashMap.put("Alice", 25);
10        hashMap.put("Bob", 30);
11        hashMap.put("Charlie", 35);
12
13        // Retrieve values
14        int age = hashMap.get("Bob");
15        System.out.println("Bob's age is " + age);
16
17        // Update values
18        hashMap.put("Charlie", 40);
19        age = hashMap.get("Charlie");
20        System.out.println("Charlie's age is " + age);
21
22        // Delete a key-value pair
23        hashMap.remove("Alice");
24        System.out.println("Alice's information has been deleted.");
25    }
26}

Graphs

A graph is a non-linear data structure consisting of nodes (also called vertices) and edges. It is used to represent connections between different entities. Graphs are widely used in various applications such as social networks, recommendation systems, routing algorithms, and much more.

In a graph, nodes represent entities and edges represent the relationships between those entities. The relationships can be many-to-many, one-to-many, or even one-to-one.

Graphs can be classified into two main types: directed graphs and undirected graphs. In a directed graph, the edges have a direction, while in an undirected graph, the edges do not have a direction.

Common Operations

• Add Vertex: Adding a new vertex/node to the graph.
• Add Edge: Connecting two vertices/nodes with an edge.
• Remove Vertex: Removing a vertex/node from the graph.
• Remove Edge: Removing an edge between two vertices/nodes.
• Traverse: Visiting all the vertices/nodes in the graph.

Graph Traversal

Graph traversal is the process of visiting all the vertices/nodes in a graph. There are two commonly used algorithms for graph traversal:

• Breadth-First Search (BFS): This algorithm explores all the vertices at the same level before moving to the next level.
• Depth-First Search (DFS): This algorithm explores as far as possible along each branch before backtracking.

Here's an example of how to represent and traverse a graph in Java:

1{code}

xxxxxxxxxx

}

class Graph {

    private int V;

    private LinkedList<Integer>[] adjacencyList;

​

    public Graph(int v) {

        V = v;

        adjacencyList = new LinkedList[v];

        for(int i=0; i<v; ++i) {

            adjacencyList[i] = new LinkedList<Integer>();

        }

    }

​

    public void addEdge(int v, int w) {

        adjacencyList[v].add(w);

    }

​

    public void BFS(int start) {

        boolean[] visited = new boolean[V];

        LinkedList<Integer> queue = new LinkedList<Integer>();

​

        visited[start] = true;

        queue.add(start);

​

        while(queue.size() != 0) {

            start = queue.poll();

            System.out.print(start + " ");

​

            Iterator<Integer> i = adjacencyList[start].listIterator();

            while(i.hasNext()) {

Sorting Algorithms

Sorting is one of the fundamental operations in computer science. It involves arranging elements in a specific order, typically in ascending or descending order. Sorting algorithms play a crucial role in various applications, such as searching, data analysis, and optimization.

There are numerous sorting algorithms available, each with its own strengths and weaknesses. Here are some commonly used sorting algorithms:

• Bubble Sort: repeatedly swaps adjacent elements if they are in the wrong order.
• Selection Sort: finds the minimum element from the unsorted part and swaps it with the first element.
• Insertion Sort: builds the final sorted array one item at a time, shifting the other elements if necessary.
• Merge Sort: divides the array into two halves, recursively sorts them, and then merges the two sorted halves.
• Quick Sort: selects a pivot element and partitions the array around the pivot, recursively sorting the two partitions.

When choosing a sorting algorithm, it's important to consider factors such as the size of the input data, the desired level of stability, and the complexity requirements. Different algorithms have different time and space complexities, which can impact performance.

Let's take a closer look at an example of the Merge Sort algorithm in Java:

1{code}

The above code demonstrates how to sort an array using the Merge Sort algorithm. It recursively divides the array into smaller subarrays, sorts them, and then merges them back together to obtain the final sorted array.

By understanding and implementing various sorting algorithms, you can efficiently solve sorting-related problems and optimize your code for better performance.

xxxxxxxxxx

}

class Main {

    public static void main(String[] args) {

        int[] arr = {5, 2, 8, 3, 1};

        mergeSort(arr, 0, arr.length - 1);

        System.out.println("Sorted array: " + Arrays.toString(arr));

    }

​

    public static void mergeSort(int[] arr, int left, int right) {

        if (left < right) {

            int mid = (left + right) / 2;

            mergeSort(arr, left, mid);

            mergeSort(arr, mid + 1, right);

            merge(arr, left, mid, right);

        }

    }

​

    public static void merge(int[] arr, int left, int mid, int right) {

        int n1 = mid - left + 1;

        int n2 = right - mid;

​

        int[] leftArr = new int[n1];

        int[] rightArr = new int[n2];

​

        for (int i = 0; i < n1; i++) {

            leftArr[i] = arr[left + i];

        }

​

        for (int j = 0; j < n2; j++) {

            rightArr[j] = arr[mid + 1 + j];

Searching Algorithms

Searching algorithms are used to find the presence or location of a specific element within a data structure. They are an essential part of problem-solving and can be implemented in various ways depending on the characteristics of the data.

Here are some common searching algorithms:

• Linear Search: iterates through each element in a data structure until the target element is found.
• Binary Search: searches a sorted data structure by repeatedly dividing the search space in half.
• Hashing: maps the target element to its location in a data structure using a hash function.

Let's take a closer look at the Binary Search algorithm in Java:

1{code}

In the above code, we have an array of integers and a target element. The binarySearch function uses the binary search algorithm to find the index of the target element in the array. It starts by setting the left and right boundaries of the search space, then iteratively adjusts the boundaries based on the comparison with the middle element.

By understanding and implementing various searching algorithms, you can efficiently search for elements within data structures, optimize search performance, and solve searching-related problems.

xxxxxxxxxx

}

class Main {

  public static void main(String[] args) {

    // Binary Search

    int[] array = {2, 5, 8, 12, 16, 23, 38, 56};

    int target = 16;

    int result = binarySearch(array, target);

    System.out.println(result);

  }

​

  static int binarySearch(int[] array, int target) {

    int left = 0;

    int right = array.length - 1;

​

    while (left <= right) {

      int mid = left + (right - left) / 2;

​

      if (array[mid] == target) {

        return mid;

      }

​

      if (array[mid] < target) {

        left = mid + 1;

      } else {

        right = mid - 1;

      }

    }

​

    return -1;

  }

Dynamic Programming

Dynamic Programming is a technique used to solve problems by breaking them down into smaller overlapping subproblems and solving each subproblem only once. It is particularly useful for problems that exhibit the optimal substructure property, which means that an optimal solution to the problem can be constructed from optimal solutions to its subproblems.

Dynamic Programming can improve the efficiency of recursive algorithms by eliminating duplicate work through memoization or by solving the subproblems in a bottom-up manner and building the solution incrementally.

Fibonacci Sequence Example

Let's take a look at an example to understand how dynamic programming works. The Fibonacci sequence is a series of numbers where each number is the sum of the two preceding ones. The sequence starts with 0 and 1.

Here's a Java code snippet that computes and prints the first 10 numbers in the Fibonacci sequence using dynamic programming:

1{code}

The code starts by defining an array dp to store the Fibonacci numbers. It initializes the base cases dp[0] = 0 and dp[1] = 1. Then, it uses a loop to compute the remaining Fibonacci numbers by summing up the two preceding ones. Finally, it prints the computed Fibonacci numbers.

By using dynamic programming, we avoid redundant calculations and improve the efficiency of computing the Fibonacci sequence.

xxxxxxxxxx

class Main {

  public static void main(String[] args) {

    // replace with your Java logic here

    int n = 10;

    int[] dp = new int[n + 1];

​

    // base cases

    dp[0] = 0;

    dp[1] = 1;

​

    // compute fibonacci numbers using dynamic programming

    for (int i = 2; i <= n; i++) {

      dp[i] = dp[i - 1] + dp[i - 2];

    }

​

    // print fibonacci numbers

    for (int i = 0; i <= n; i++) {

      System.out.print(dp[i] + " ");

    }

  }

}
